Thermal Imaging Scope Condor CQ50L 2.0 | Hikmicro

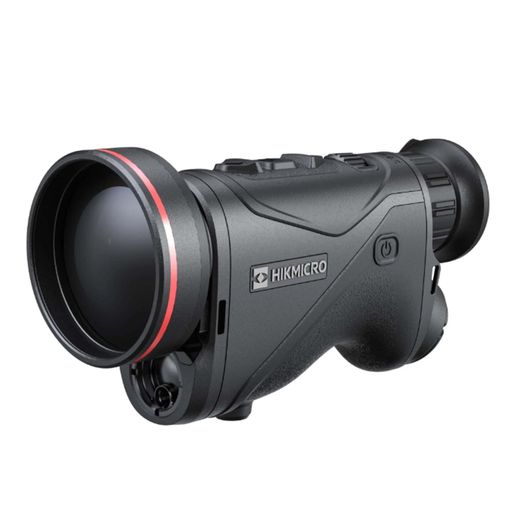

The Hikmicro Condor CQ50L 2.0 is a handheld thermal imaging monocular with a built-in laser rangefinder (LRF). It combines a 640 × 512 sensor with a low NETD of less than 15 mK and a focusable 50 mm objective lens. With the bright AMOLED display, WiFi, and 64 GB internal storage, you have a complete observation device for detecting heat sources.
Thermal Imaging
The core of this thermal imaging monocular is an uncooled VOx microbolometer with a resolution of 640 × 512 pixels and a pixel pitch of 12 µm. The NETD of less than 15 mK indicates how sensitive the sensor is to small temperature differences. The image is delivered at full resolution at 50 fps, supported by HSIS shutterless calibration. The built-in laser rangefinder helps you determine the distance to a heat source.
Optics and Image Display
The focusable 50 mm objective lens (F=1.0) offers an optical magnification of 2.7x, extendable with 1x, 2x, 4x, and 8x digital zoom. You view the image on a 0.49" AMOLED screen with a resolution of 1920 × 1080. The AMOLED display type ensures a high-contrast rendering of the thermal image.
Technology and Operation
The Condor CQ50L 2.0 runs on two replaceable 21700 Li-ion batteries, with an operating time of up to 6.5 hours. Via WiFi you can share footage, and recordings are saved to the built-in 64 GB internal storage. The device has an IP67 rating and an operating temperature range of -30 °C to 55 °C. It weighs 537 grams.
Points to Note
Please be aware that these specifications indicate a detection range via the LRF, but do not specify a separate recognition or identification range. The two 21700 batteries are replaceable; check in advance whether you wish to order spare batteries.
| SKU | HIKCQ50L-2.0 |
|---|---|
| Weight (KG) | 0.46 |
| Color | Black |
| Product Type | Thermal Viewer |
| Battery | Li-ion, 21700 |
| Battery Life (Hours) | 6.50 |
| Pixel Pitch (µm) | 12 |
| Display Type | AMOLED |
| Frame Rate (Hz) | 50 Hz |
| Display Resolution | 1920x1080 |
| Sensor Resolution (pixels) | 640x512 |
| Thermal Sensitivity (NETD mK) | <=20 |
| Water or windproof? | Water and windproof |
| Brand | Hikmicro |
